Non c'è olio nel compressore
Viene normalmente fornito con attacco Pad (senza attacco tubo)
da noi viene fornito con O-Ring di connessione verticale o con
O-ring di connessione orizzontale o rotolock
È quindi necessario trasferire il vecchio collegamento del tubo al nuovo
Per Carrier unit :
Xarios 300
Xarios 300 05RY
Xarios 300 07
Xarios 300 RY
Xarios 350
Xarios 350 05
Xarios 350Mt
Xarios 350Mt 05
Carrier® Descrizione Articolo:

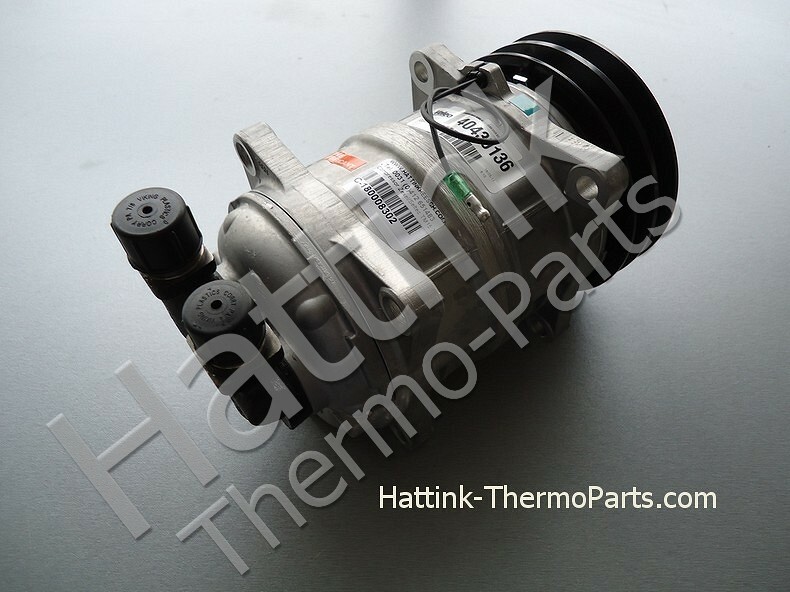

Compressor TM15 12V
Compressor TM15 12V, 2A Groove 135MM
Carrier® Transicold Numero parte:
18-10157-13
Código del Producto Ciudad Carrier®:
18-00083-01
18-00083-02
18-00083-03
18-00074-00
18-10157-02
18-10157-00
Descrizione on Articolo:

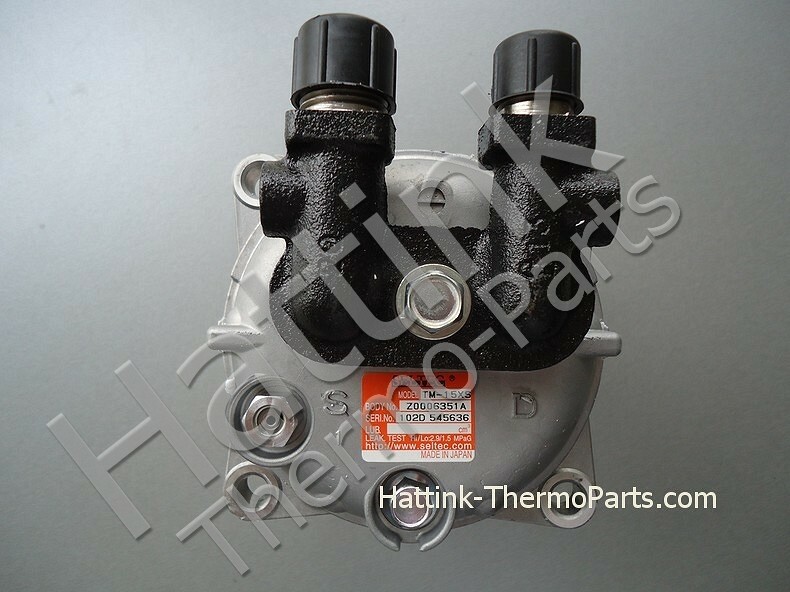

Seltec Model TM-15XS
Body no. Z0006351A
Leak test Hi/Lo:2.9/1.5 MPaG
Made in Japan
Netto 7400 gram
Description:
TM 15 XS OR Rotolock Horizontal 12V 5" 2G A
Note oilless
Displacement 146,7 cc
N° Cylindres 6
Refrigerant R404a
Oil Type Eartic 68 (or Equiv.)
Oil Quantity 150 cc
RPM MAXIMUM 6000 r.p.m.
Installation position ± 45°
Rotation Clockwise
Suction fitting 1" 14UNS
Discharge fitting 1" 14UNS

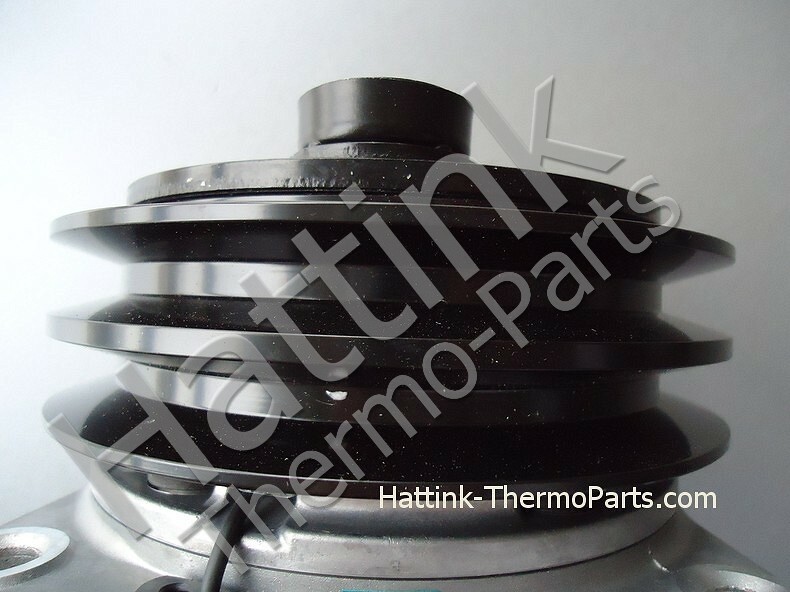

Pulley Diameter Ø 125 mm
Voltage 12V
Number of grooves 2
Groove type A
Section Groove (S) 12,7 mm
